Invisense2017–2019

Invisense

Moisture readings through the wall, from sensors with no battery

Construction / IoT / Hardware

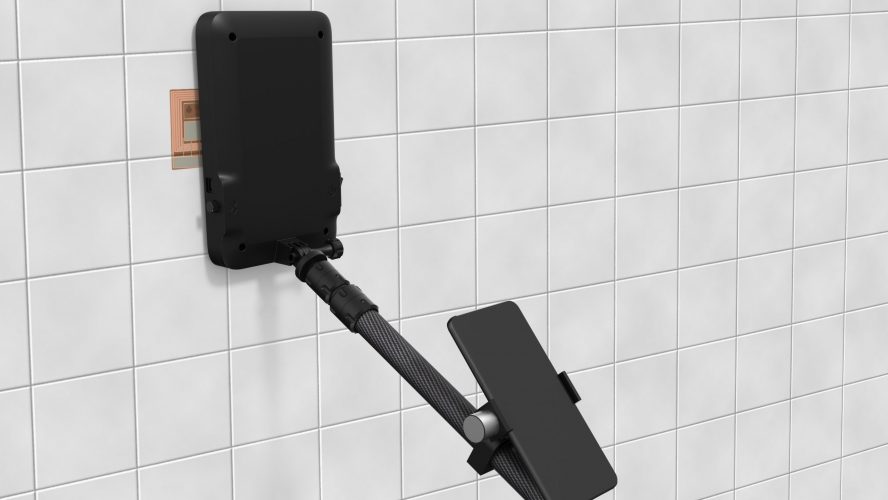

Handheld Invisense reader held against a tiled wall over an embedded sensor inlay

Invisense measures moisture inside building structures without opening them up. The product has three parts. A passive thin-film sensor is cast into the structure, a custom handheld reader takes the measurement straight through the wall, and an app on a phone or tablet operates the reader. I wrote the reader's firmware and the measurement algorithm, built the app, and took the radio through CE certification.

01

Nothing in the wall has a battery

The sensor is a printed coil on a flexible film, sealed into the structure with no power source and no radio of its own. All the electronics live in the handheld reader, which is held against the wall and takes the measurement through the material in between. Nothing has to be opened up to get a reading, and nothing buried in the building can go flat.

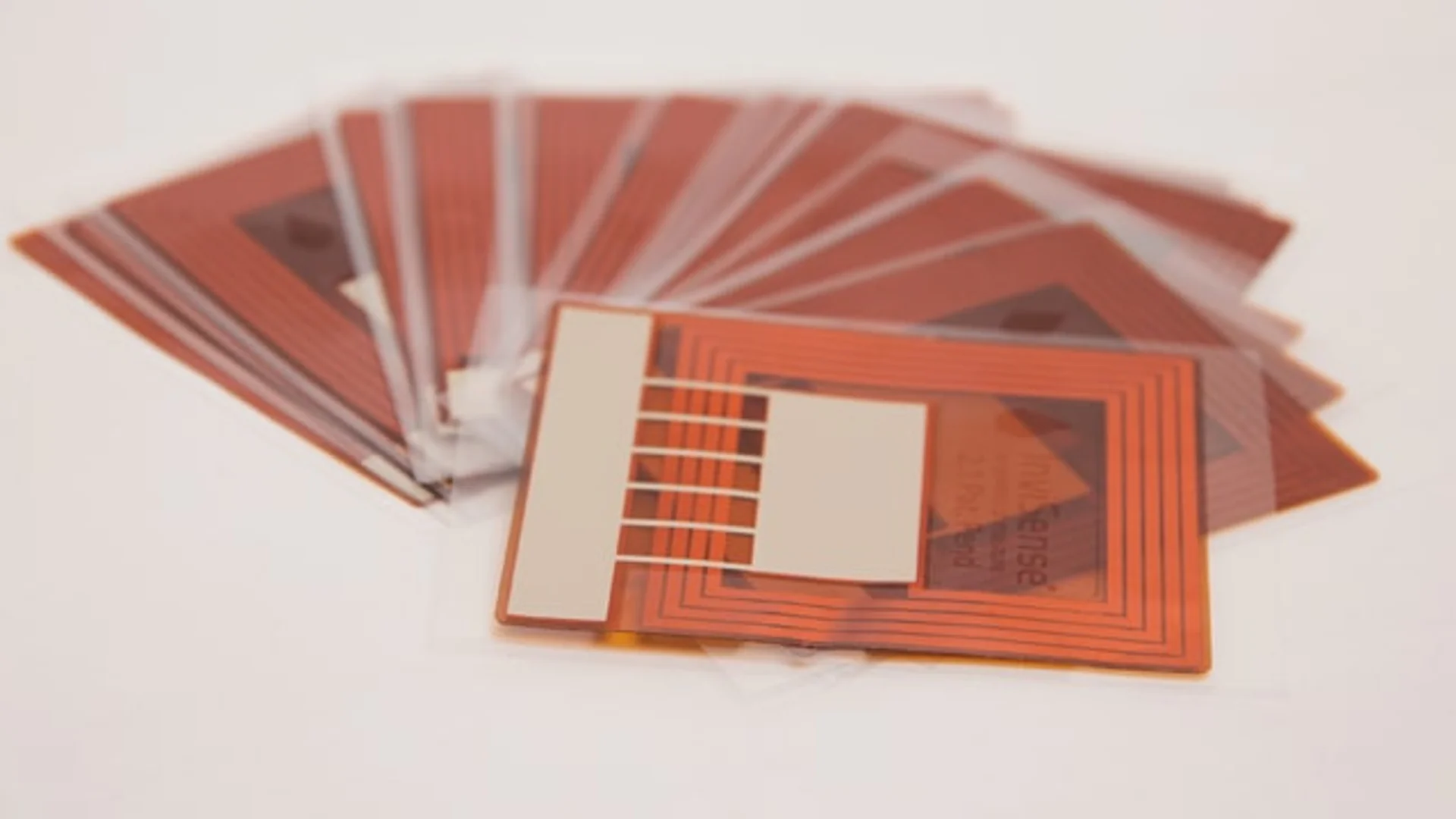

Flexible printed Invisense sensor inlays, each a spiral antenna coil on film

02

Every reading is taken on site, at a spot the building plans mark

A reading only happens where the reader can reach, so this is a measurement taken on site, with the unit held against the wall. Once the structure is closed, the inlay is invisible. Finding one is a drawing exercise. The sensor positions are specified in the building plans, and the reader goes where the plans say.

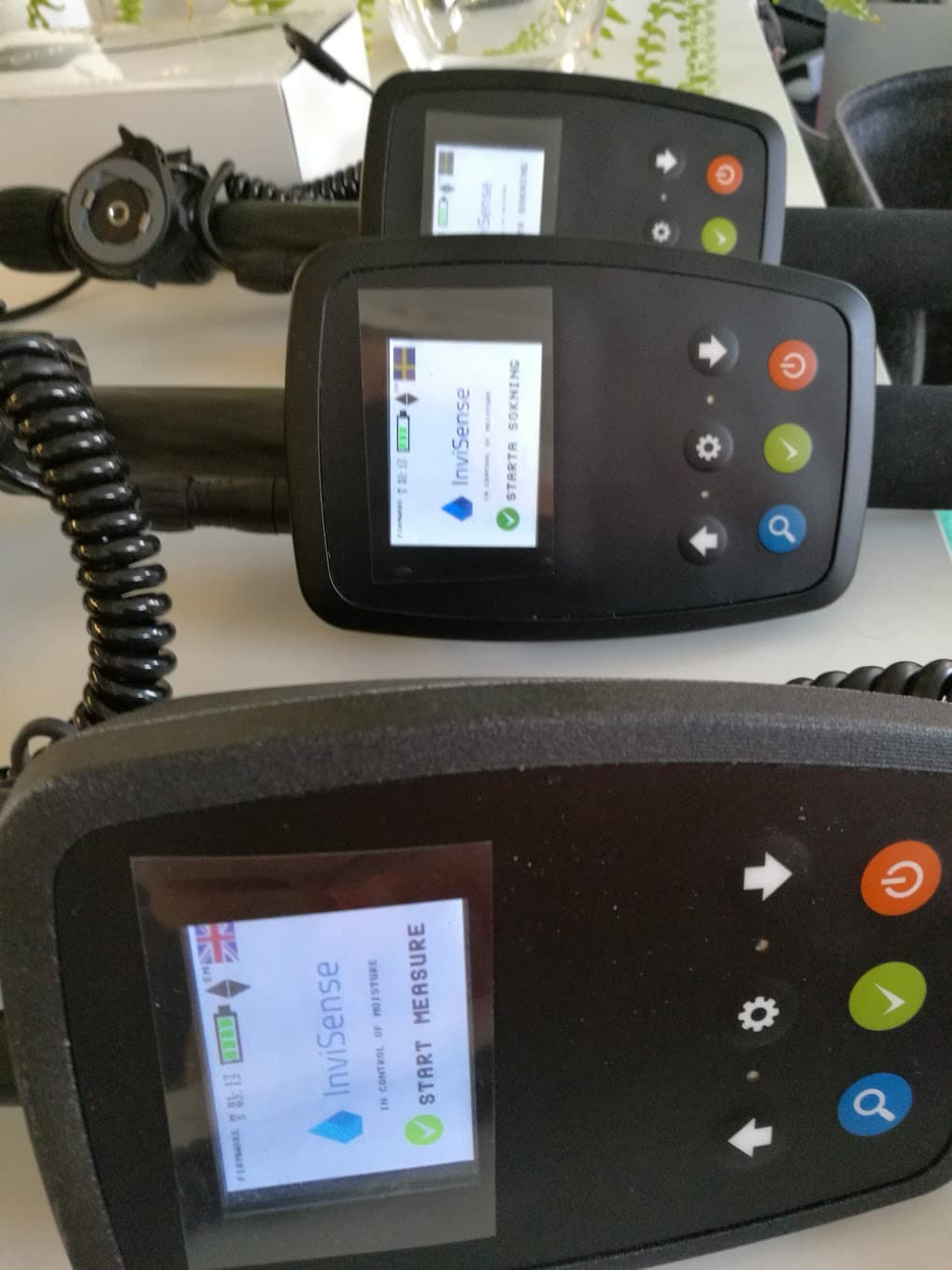

Three handheld Invisense readers showing the bilingual measurement UI

03

The reader's firmware and the app were built as one system

The reader streams each measurement over Bluetooth to the app, and the app is how the reader is operated, on Android and iOS alike. I wrote both ends. What the algorithm can honestly report and what the app should show a builder standing in a basement are the same design question, so the two were developed in step. Firmware updates travel over the same Bluetooth link, so a reader already out on site is never stuck on the version it shipped with.

Stack
C, FreeRTOS, React Native
Reader
nRF52, BLE + DFU

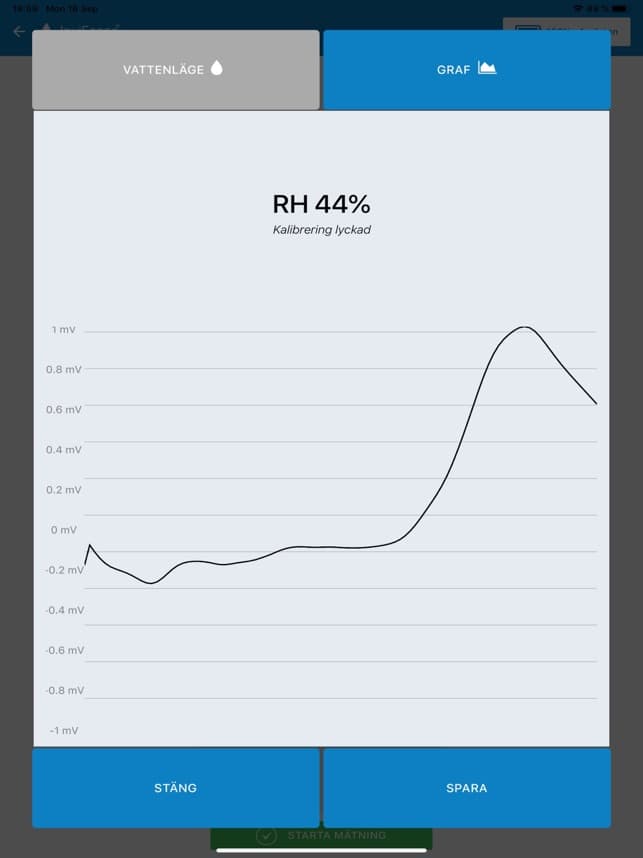

Invisense Mobile Application Development

04

Radio certification is a process, and someone has to be in the room

With no pre-certified radio module to lean on, the product needed a full radio sweep, in an anechoic chamber with a biconical antenna and a turntable rather than as a paperwork exercise. I led it, as liaison and on-site representative throughout. Being in the room is most of the job. The lab finds something, and you change the firmware that afternoon.

Scope
CE: EMC and radio
Design
Chip-down, full sweep
Invisense Radio Tests and Certification

05

The person who wrote the firmware was on the line flashing it

I assembled, flashed and tested 50+ units on the line myself rather than handing them to someone else. When the boards did not behave the way the schematic promised, I was on site to troubleshoot them and advise on the hardware design.

Invisense Line assembly

What I owned

Firmware & Application Developer

  • Reader firmware, with Bluetooth streaming and over-the-air updates
  • Android and iOS app that operates the reader
  • Measurement algorithm, developed with the app
  • CE certification, radio included, led on site
  • Assembly, flashing and QA on the production line
  • Hardware design advice and on-site troubleshooting

Embedded C / FreeRTOS / nRF52 / BLE / DFU / React Native / Hardware QA / CE Certification / IoT
