Lifee

An activity game children wear, from circuit board to classroom

Healthcare / Gaming / Hardware

Units Shipped
1000+
Schools Deployed
10+

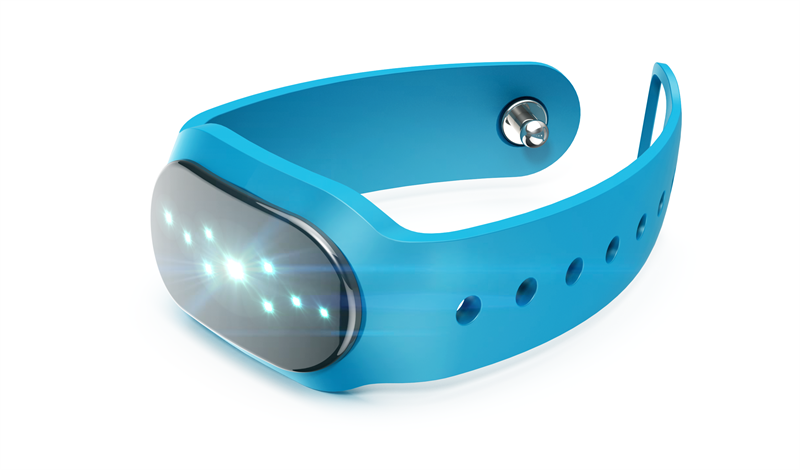

Lifee Activity Bracelet Product Shot

I co-founded Lifee, and the product was a game the child happened to wear. Most activity bands measure. This one fed a creature that levelled up when a child ran around, and let them challenge their friends with it. I designed the circuit, wrote the firmware, built everything Bluetooth including the app's link to the bracelet, set up the production line and took it through CE certification.

01

The point was the game, not the step count

The bracelet earns points for movement and spends them in the app, on a creature that gains levels and currencies. That was a deliberate position against a market full of bands that report numbers at you. Make it fun, and let the exercise be the by-product. In 2016 the regional SKAPA Framtidens Innovatör prize went to the four of us at Lifee, and the jury's citation named the gamification specifically.

The Lifee app game screen: a creature with an XP bar and earned currencies

02

From circuit to enclosure, then through a reflow oven at the university

A custom PCB carrying BLE, battery management and an accelerometer, designed alongside the enclosure it had to fit inside. The first prototypes were assembled by hand and run through an IR reflow oven at Linköping University, the cheapest way to find out whether a board you drew actually works.

Inside an IR reflow oven, a board being profiled with a taped thermocouple

03

Firmware that can be updated after the product has left

On a wearable sold to schools, a bug you cannot fix remotely is a bug you fix by post. So the firmware updates over the air from the iOS and Android apps. I wrote the firmware, and the Bluetooth and firmware-update module the app uses to talk to the bracelet.

Stack
FreeRTOS, BLE, React Native
In the app
BLE + DFU module
Finished Lifee bracelet, an LED module set into a blue silicone strap

04

A production line needs software too

Every unit off the line went through a tool I built. It flashes the firmware, runs the full test suite and uploads each device's keys and IDs to a cloud backend and database I also built, and it is simple enough that the internal team and the external assembly house could run it without an engineer present. Then I set up the line itself and managed assembly, testing and shipping of 1000+ units.

Stack
Node.js, Electron, jQuery
Per device
Keys and IDs to the cloud
Lifee - Assembled PCBs

05

CE the long way round

The radio was designed onto the board itself rather than bought as a pre-certified module, so there was no certification to inherit and the product needed full EMC and radio testing for CE. I led it, along with the App Store and Google Play releases. The bracelets went into schools, which is where a wearable for children has to survive contact with actual children.

Lifee Exploded View

What I owned

Co-founder & Technical Lead

  • Hardware design, from circuit board to enclosure
  • Bracelet firmware, Bluetooth included
  • The app's Bluetooth link, with over-the-air firmware updates
  • Flash-and-test tool for the assembly line
  • Cloud backend and database for device keys and IDs
  • CE certification and the production line setup
  • Assembly, testing and shipping of 1000+ units

Hardware Design / Embedded C / FreeRTOS / BLE / React Native / Node.js / Electron / OTA Updates / Linux / IoT

On the record

  • Award · 2016

    SKAPA Framtidens Innovatör 2016, Östergötland

    A regional prize for innovators aged 18 to 29, awarded to the four-person Lifee team.

    Affärsstaden
  • Press · 2016

    Armband ska få barn att vilja röra på sig

    Regional public radio on the bracelet, after the award, as a way to make children want to move.

    Sveriges Radio P4 Östergötland
